Unit 3 – Programming Techniques

Introduction to Programming Techniques

Programming techniques form the foundation of software development, enabling developers to create efficient, scalable, and maintainable applications. These techniques vary based on the problem domain, project requirements, and the developer’s experience. This blog explores key programming approaches, development models, and related concepts, providing insights into their advantages, disadvantages, and real-world applications.

Types of Programming Techniques (Approaches)

Programming approaches are categorized into logical methodologies that define how a program is structured and implemented. The main types include:

Modular Approach
Top-Down Approach
Bottom-Up Approach
Structured Programming Technique
Object-Oriented Programming (OOP)

Modular Approach

The modular approach involves dividing a program into smaller, independent modules that can be developed, tested, and debugged separately.

Advantages of the Modular Approach

Improved Maintainability: Easier to modify individual modules without affecting the entire program.
Reusability: Modules can be reused across different programs.
Simplified Debugging: Errors are localized to specific modules.

Disadvantages of Modular Approach

Complex Integration: Combining modules can be challenging.
Overhead: Managing module dependencies increases development effort.

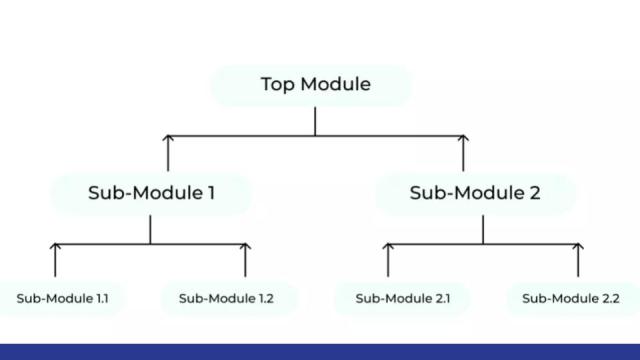

Top-Down Approach

The top-down approach begins with designing the program’s high-level structure and breaking it down into smaller components.

Advantages of Top-Down Approach

Clear Overview: Provides a comprehensive understanding of the system’s structure.
Focused Development: Starts with the most critical components.

Disadvantages of Top-Down Approach

Time-Intensive: Requires extensive initial planning.
Rigidity: Difficulty adapting to changes in the middle of development.

Bottom-Up Approach

This approach builds systems starting with small, tested components integrated into larger systems.

Advantages of Bottom-Up Approach

Reusable Components: Promotes the creation of reusable code.
Flexibility: Easier to adapt to changes during development.

Disadvantages of Bottom-Up Approach

Lack of Vision: Can miss the big picture during initial stages.
Integration Challenges: Combining components can introduce issues.

Difference between Top-Down and Bottom-Up Approach

Feature	Top-Down	Bottom-Up
Focus	System-level design	Component-level design
Flexibility	Less adaptable	More adaptable
Reusability	Limited	High

Structured Programming Technique

Structured programming emphasizes using clear, well-defined control structures to enhance readability and reduce complexity.

Three Basic Logical Structures

Sequence: Executes statements in order.
Selection: Makes decisions (e.g., if-else).
Iteration: Repeats actions (e.g., loops).

Advantages of Structured Programming

Enhanced Readability: Clear logical flow.
Reduced Complexity: Simplifies debugging.

Disadvantages of Structured Programming

Rigidity: Limited to simple problems.
Scalability Issues: Not ideal for large systems.

Object-Oriented Programming Technique

Object-Oriented Programming (OOP) organizes code around objects, encapsulating data and behavior.

Advantages of OOP

Code Reusability: Through inheritance.
Data Security: Encapsulation protects data integrity.

Disadvantages of OOP

Overhead: Increased learning curve.
Performance: Can be slower due to abstraction.

Program or Software Development Models

Software Development Life Cycle (SDLC) is a process used by the software industry to design, develop and test high quality softwares. The SDLC aims to produce a high-quality software that meets or exceeds customer expectations, reaches completion within times and cost estimates.

SDLC is a process followed for a software project, within a software organization. It consists of a detailed plan describing how to develop, maintain, replace and alter or enhance specific software. The life cycle defines a methodology for improving the quality of software and the overall development process.

Fig: Software Development Life Cycle

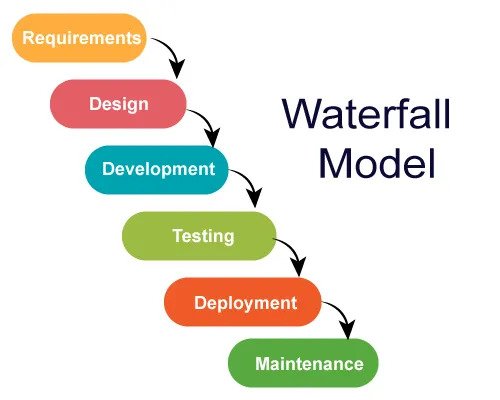

Waterfall Model

A linear model with sequential phases like analysis, design, implementation, testing, deployment, and maintenance.

Advantages of Waterfall Model

Clarity: Each phase is well-defined.
Documentation: Thorough at every stage.

Disadvantages of Waterfall Model

Inflexibility: Difficult to accommodate changes.
Late Testing: Issues discovered late.

Fig: Waterfall model

Spiral Model

Combines iterative development with systematic risk management.

Advantages of Spiral Model

Risk Management: Identifies and mitigates risks early.
Iterative Refinement: Continuously improves the system.

Disadvantages of Spiral Model

Complexity: High management overhead.
Cost: Expensive for smaller projects.

Fig: Spiral Model

Difference between Waterfall Model and Spiral Model

Feature	Waterfall	Spiral
Flexibility	Low	High
Risk Handling	Minimal	Comprehensive

Prototype or Transformation Model

The Prototype Model involves creating a simplified version of the application (a prototype) to understand requirements and refine design decisions.

Advantages of Prototype Model

Enhanced Understanding: Helps stakeholders visualize requirements.
Reduced Risk: Identifies potential design and functional issues early.
User Feedback: Allows iterative improvements based on feedback.

Disadvantages of Prototype Model

Time-Consuming: Frequent iterations may delay the final product.
Misunderstanding: Users might need to correct the prototype for the final system.

Fig: Prototype Model

Difference between Waterfall Model and Prototype Model

Feature	Waterfall Model	Prototype Model
Process	Sequential	Iterative
User Involvement	Limited	High
Risk Handling	Minimal	Comprehensive

Iterative Model

The Iterative Model involves developing software in repeated cycles (iterations), with each iteration building on the previous one.

Advantages of Iterative Model

Flexibility: Accommodates changes during development.
Risk Reduction: Issues are identified and resolved early.
Continuous Feedback: Encourages stakeholder engagement.

Disadvantages of Iterative Model

Overlapping Phases: Requires careful management to avoid confusion.
Resource Intensive: Demands significant time and effort.

Fig: Iterative Model

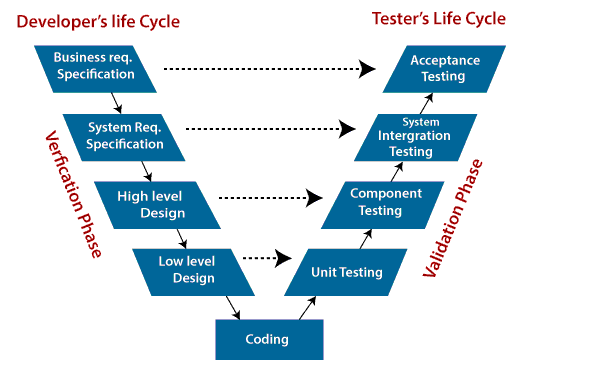

The V-Model

The V-Model (Verification and Validation) is an extension of the Waterfall Model, emphasizing a parallel testing phase for each development stage.

Advantages of V-Model

Quality Assurance: Testing begins early in the development lifecycle.
Clear Structure: Ensures no stage is overlooked.

Disadvantages of V-Model

Inflexible: Adapting to changes is difficult.
Costly: High focus on documentation and testing increases costs.

Fig: V-Model

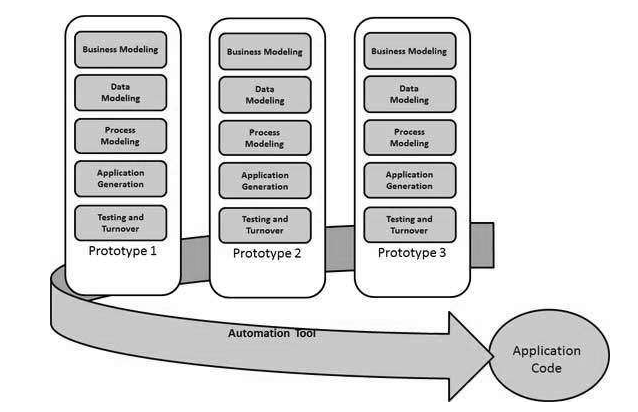

Rapid Application Development (RAD) Model

RAD emphasizes quick development and user involvement, using prototypes and iterative feedback.

Advantages of RAD Model

Speed: Reduces development time.
User Focused: Continuous involvement of users ensures alignment with requirements.

Disadvantages of RAD Model

Limited Applicability: Not suitable for large-scale projects.
Dependence: Relies heavily on user participation.

Fig: Rad Model

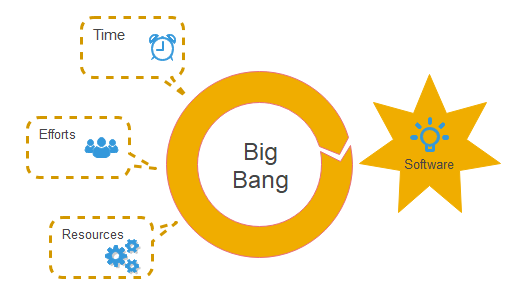

The Big Bang Model

The Big Bang Model involves minimal planning and focuses on coding, suitable for small or experimental projects.

Advantages of Big Bang Model

Simplicity: Minimal overhead.
Flexibility: Easy to adapt to changes.

Disadvantages of Big Bang Model

High Risk: Lack of structure can lead to failure.
Scalability Issues: Unsuitable for complex systems.

The Evolutionary Model

The Evolutionary Model combines iterative and incremental approaches to evolve a system over time.

Advantages of Evolutionary Model

Incremental Delivery: Delivers functional components early.
Adaptability: Accommodates changing requirements.

Disadvantages of Evolutionary Model

Complexity: Requires skilled developers for seamless integration.
Time-Consuming: Continuous iteration may extend timelines.

Data Validation and Data Analysis

What Is Data Validation?

Data validation ensures that data entered into a system meets predefined rules, enhancing accuracy and reliability.

Data Validation Techniques

Range Check: Ensures data falls within a specified range.
Format Check: Verifies data conforms to a specific format (e.g., dates).
Consistency Check: Ensures data aligns with other data points.
Presence Check: Confirms required fields are not empty.
Length Check: Verifies data meets length requirements.

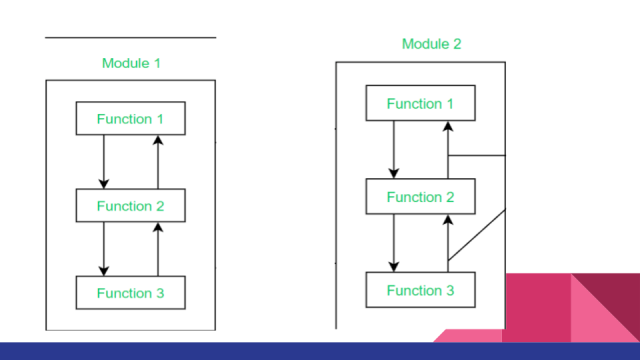

Cohesion and Coupling

What Are Cohesion and Coupling?

Cohesion: Measures how closely related the functionalities of a module are.
Coupling: Refers to the interdependence between modules.

Types of Cohesion

Coincidental Cohesion: Unrelated tasks grouped in a module.
Logical Cohesion: Related tasks grouped by type (e.g., input handling).
Temporal Cohesion: Tasks executed together at the same time.
Procedural Cohesion: Tasks grouped to follow a specific order.
Communicational Cohesion: Tasks that use the same data are grouped.
Sequential Cohesion: Output of one task is input for another.
Functional Cohesion: All tasks contribute to a single, specific function.

Types of Coupling

Content Coupling: One module modifies the internal workings of another.
Common Coupling: Modules share global data.
External Coupling: Modules depend on external systems or formats.
Control Coupling: One module controls another via control flags.
Stamp Coupling: Modules share composite data structures.
Data Coupling: Modules share only necessary data.
Message Coupling: Modules communicate through message passing.

Logics of Program Development

Some of the Logic Used in Programming

Sequential Logic: Executes statements in a linear order.
Selection Logic: Implements decision-making (e.g., if-else).
Iterative Logic: Executes repetitive tasks (e.g., loops).
Recursive Logic: A function calls itself to solve a problem.

Communication Between Modules

Communication between modules ensures smooth data flow and integration within a system.

Key Relations

USES Relation: One module uses functionalities of another.
IS_COMPONENT_OF Relation: Defines hierarchical relationships (e.g., submodules within a module).

UNIT 3- Programming Technique(Programming Logic and Technique) from Nabin Dhakal

Unit 3- Programming Techniques (1)Download

Conclusion

From foundational programming techniques to advanced software development models, understanding these concepts is crucial for creating reliable, maintainable, and scalable software. By leveraging the right approach for the right problem, developers can maximize efficiency, minimize risks, and deliver high-quality solutions.
